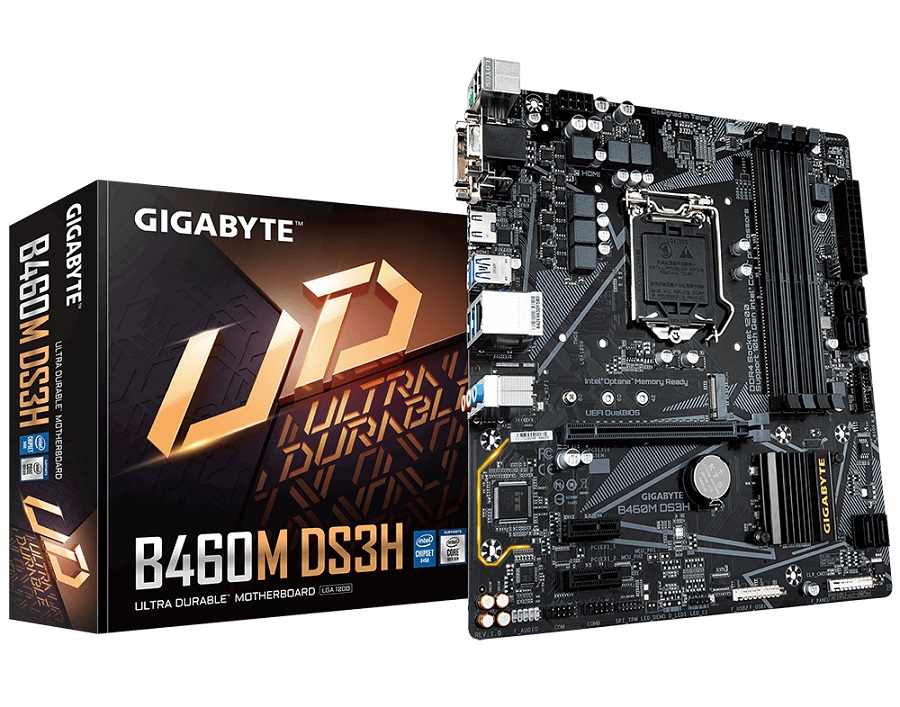

Gigabyte B460M DS3H mATX Motherboard 4xDDR4 128GB 10th Gen LGA1200 1xM.2 6xSATA LAN (1000 Mbit/100 Mbit) 2xPCIE 1xHDMI 1xDVI-D 6xUSB3.2


Gigabyte B460M DS3H mATX Motherboard 4xDDR4 128GB 10th Gen LGA1200 1xM.2 6xSATA LAN (1000 Mbit/100 Mbit) 2xPCIE 1xHDMI 1xDVI-D 6xUSB3.2
$144.00 inc GST
■ Our stockin-stock
■ Supplier's stock20+
■ BrandGigabyte
■ Part #MBG-B460MDS3H

Product Information




Intel B460 Ultra Durable Motherboard with GIGABYTE 8118 Gaming LAN, PCIe Gen3 x4 M.2, 7 Colors RGB LED Strips Support, Anti-Sulfur Resistor, Smart Fan 5, DualBIOS.

  • Supports 10th Gen Intel Core� Processors
  • Dual Channel Non-ECC Unbuffered DDR4 , 4 DIMMs
  • High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
  • Ultra-Fast M.2 with PCIe Gen3 X4 & SATA Interface
  • RGB FUSION supports RGB LED Strips in 7 Colors
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • Anti-Sulfur Resistors Design
  • Ultra Durable� 15KV Surge LAN Protection
  • GIGABYTE UEFI DualBIOS�
  • Intel Optane� Memory Ready




Specifications:

  • CPU
    1. Support for 10th Generation Intel Core� i9 processors/Intel Core� i7 processors/Intel Core� i5 processors/Intel Core� i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package
    2. L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. Intel B460 Express Chipset
  • Memory
    1. Intel Core� i9/i7 processors:
      Support for DDR4 2933/2666/2400/2133 MHz
    2. Intel Core� i5/i3/Pentium/Celeron processors:
      Support for DDR4 2666/2400/2133 MHz
    3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    4. Dual channel memory architecture
    5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    7. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
    Integrated Graphics Processor-Intel HD Graphics support:

    1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
      * The DVI-D port does not support D-Sub connection by adapter.
    3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
      * Support for HDMI 1.4 version and HDCP 2.3.
    Support for up to 3 displays at the same time
    Maximum shared memory of 512 MB
  • Audio
    1. Realtek ALC887 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
  • LAN
    1. Realtek GbE LAN chip (1000 Mbit/100 Mbit)
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    2. 2 x PCI Express x1 slots
      (All of the PCI Express slots conform to PCI Express 3.0 standard.)
  • Storage Interface
    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
    2. 6 x SATA 6Gb/s connectors
    3. Support for RAID 0, RAID 1, RAID 5, and RAID 10
      * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
    Intel Optane� Memory Ready
  • USB
    Chipset:
    1. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    2. 2 x USB 2.0/1.1 ports on the back panel
    Chipset+USB 2.0 Hub:
    1. 4 x USB 2.0/1.1 ports available through the internal USB headers
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 2 x system fan headers
    5. 2 x RGB LED strip headers
    6. 6 x SATA 6Gb/s connectors
    7. 1 x M.2 Socket 3 connector
    8. 1 x front panel header
    9. 1 x front panel audio header
    10. 1 x USB 3.2 Gen 1 header
    11. 2 x USB 2.0/1.1 headers
    12. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    13. 2 x serial port headers
    14. 1 x Clear CMOS jumper
  • Back Panel Connectors
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x D-Sub port
    3. 1 x DVI-D port
    4. 1 x HDMI port
    5. 4 x USB 3.2 Gen 1 ports
    6. 2 x USB 2.0/1.1 ports
    7. 1 x RJ-45 port
    8. 3 x audio jacks
  • I/O Controller
    1. iTE I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Overheating warning
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the fan you install.
  • BIOS
    1. 2 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. Support for DualBIOS�
    4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      Ambient LED
      Smart Backup
      System Information Viewer
    2. Support for Q-Flash
    3. Support for Xpress Install
  • Bundled Software
    1. Norton Internet Security (OEM version)
    2. Realtek 8118 Gaming LAN Bandwidth Control Utility
  • Operating System
    1. Support for Windows 10 64-bit
  • Form Factor
    1. Micro ATX Form Factor; 24.4cm x 22.5cm
  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
