HARDWARE FEATURES |
Interfaces |
3 10/100Mbps LAN Ports, 1 10/100Mbps LAN/WAN Port, 1 SIM Card Slot |
Button |
WPS/Reset Button, Wireless On/Off Button, Power On/Off Button |
Dimensions (W X D X H) |
7.95 x 5.55 x 1.32 in. (202 x 141 x 33.6 mm) |
Antenna |
3 Internal Wi-Fi Antennas, |
2 Detachable External 4G LTE Antennas |
External Power Supply |
12V/1A |
WIRELESS FEATURES |
Wireless Standards |
IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
Frequency |
2.4GHz and 5GHz |
Signal Rate |
300Mbps at 2.4GHz, 433Mbps at 5GHz |
Reception Sensitivity |
5GHz: 11a 54M: -74dBm |
11ac HT20: -67dBm |
11ac HT40: -64dBm |
11ac HT80 : -60dBm |
11n HT20: -71dBm |
11n HT40: -70dBm |
¡¡ |
2.4G: 11g 54M: -76dBm |
11n HT20: -73dBm |
11n HT40: -67dBm |
Transmit Power |
CE: <20dBm(2.4GHz), <23dBm(5GHz) |
Wireless Functions |
Enable/Disable Wireless Radio, WDS Bridge, WMM, |
Wireless Statistics |
Wireless Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
Network Type |
4G: FDD-LTE Cat4 (800/900/1800/2100/2600MHz) |
TDD-LTE (2300/2600MHz) |
3G: DC-HSPA+/HSPA+/HSPA/UMTS (900/2100MHz) |
2G: EDGE/GPRS/GSM (850/900/1800/1900MHz) |
SOFTWARE FEATURES |
Quality of Service |
Trafc Control(IP QoS) |
Operating Modes |
3G/4G Router, Wireless Router |
WAN Type |
Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
Management |
Access Control, Local Management, Remote Management |
DHCP |
Server, Client, DHCP Client List, Address Reservation |
Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
Dynamic DNS |
DynDns, NO-IP |
VPN Pass-Through |
PPTP, L2TP, IPSec |
Access Control |
Parental Control, Local Management Control, Host List, |
Access Schedule, Rule Management |
Firewall Security |
DoS, SPI Firewall, IP Address Filter/Domain Filter, |
IP and MAC Address Binding |
Protocols |
Supports IPv4 and IPv6 |
Guest Network |
2.4GHz guest network x 1, 5GHz guest network x 1 |
OTHERS |
Certification |
CE, FCC, RoHS |
Package Contents |

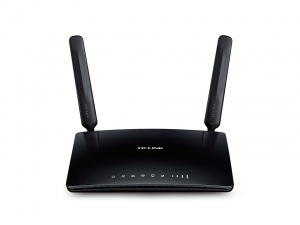

AC750 Wireless Dual Band 4G LTE Router, Archer MR200 |
RJ45 Ethernet Cable |
Power Adapter |
Quick Installation Guide |
Micro to Standard SIM Card Adapter |
Nano to Standard SIM Card Adapter |
System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista¢a or Windows 7, 8, 8.1, MAC OS, NetWare, UNIX or Linux |
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browers or higher,or other Java-enabled browsers |
SIM Card |
Environment |
Operating Temperature: 0¡E~40¡E (32¢µ ~104¢µ) |
Storage Temperature: -40¡E~70¡E (-40¢µ ~158¢µ) |
Operating Humidity: 10%~90% non-condensing |
Storage Humidity: 5%~90% non-condensing |
