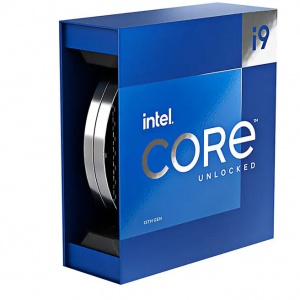

Product Collection 13th Generation Intel® Core™ i9 ProcessorsCode Name Products formerly Raptor LakeUse Conditions PC/Client/Tablet | Workstation Total Cores 24# of Performance-cores 8# of Efficient-cores 16Total Threads 32Max Turbo Frequency 5.80 GHzIntel® Thermal Velocity Boost Frequency 5.80 GHzIntel® Turbo Boost Max Technology 3.0 Frequency ‡ 5.70 GHzPerformance-core Max Turbo Frequency 5.40 GHzEfficient-core Max Turbo Frequency 4.30 GHzPerformance-core Base Frequency 3.00 GHzEfficient-core Base Frequency 2.20 GHzCache 36 MB Intel® Smart CacheTotal L2 Cache 32 MBProcessor Base Power 125 WMaximum Turbo Power 253 W Embedded Options Available NoMax Memory Size (dependent on memory type) 128 GBMemory Types Up to DDR5 5600 MT/s Up to DDR4 3200 MT/sMax # of Memory Channels 2Max Memory Bandwidth 89.6 GB/sECC Memory Supported ‡ YesProcessor Graphics ‡ Intel® UHD Graphics 770Graphics Base Frequency 300 MHzGraphics Max Dynamic Frequency 1.65 GHzGraphics Output eDP 1.4b | DP 1.4a | HDMI 2.1Execution Units 32Max Resolution (HDMI)‡ 4096 x 2160 @ 60HzMax Resolution (DP)‡ 7680 x 4320 @ 60HzMax Resolution (eDP - Integrated Flat Panel)‡ 5120 x 3200 @ 120HzDirectX* Support 12OpenGL* Support 4.5OpenCL* Support 3Multi-Format Codec Engines 2Intel® Quick Sync Video YesIntel® Clear Video HD Technology Yes# of Displays Supported ‡ 4Device ID 0xA780 Direct Media Interface (DMI) Revision 4Max # of DMI Lanes 8Scalability 1S OnlyPCI Express Revision 5.0 and 4.0PCI Express Configurations ‡ Up to 1x16+4 | 2x8+4
Important Note: Product information is acquired from suppliers and relevant manufacturers. Please check directly with the manufacturers for the most up to date information.
While we make every effort to keep this site current and error free, we cannot honour errors which include but are not limited to outdated/incorrect pricing and/or specifications.
Prices and specifications can change without notice. Pictures are for illustration purposes only and are not guaranteed to be completely accurate.
Individual compatibility of items not guaranteed unless installed and tested by our technicians. Please email us with any specific enquiry.
3 years pick up and delivery warranty organised by Intel.
Intel contact details are listed on our website under Warranty.
