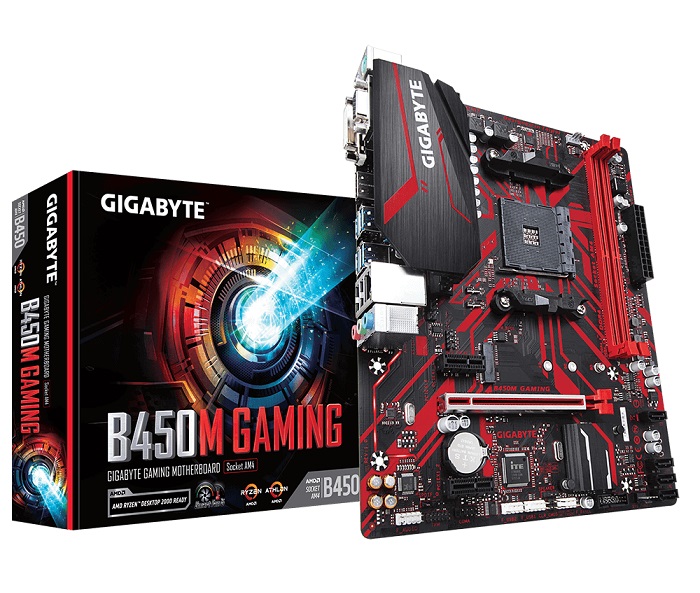

Gigabyte GIG MBD GA-B450M-GAMING


GIG MBD GA-B450M-GAMING
$121.00 inc GST
■ Our stockin-stock
■ Supplier's stock100+
■ BrandGigabyte
■ Part #GA-B450M-GAMING

Product Information




AMD B450 Gaming Motherboard with Hybrid Digital PWM, GIGABYTE Gaming LAN with Bandwidth Management, PCIe Gen3 x4 M.2, 7-colors RGB LED Strips Support, Anti-Sulfur Resistors Design

  • Supports AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ Ryzen 1st Generation Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • HDMI, DVI-D, D-sub Ports for Multiple Display
  • Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • RGB Fusion supports RGB LED Strips in 7-Colors
  • High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
  • Smart Fan 5 features 5 Temperature Sensors and 3 Hybrid Fan Headers
  • APP Center Including EasyTune and Cloud Station Utilities

Specifications

  • CPU
    1. AM4 Socket: Support for AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ Ryzen 1st Generation Processors
    (3rd Ryzen CPU may need update BIOS to support. Please refer "CPU Support List" for more information.)
  • Chipset
    1. AMD B450
  • Memory
    1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
    2. Dual channel memory architecture
    3. Support for DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz memory modules
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
    Integrated Graphics Processor:
    1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
      * The DVI-D port does not support D-Sub connection by adapter.
    3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.0 version and HDCP 2.2.
      * Actual support may vary by CPU.
    Maximum shared memory of 2 GB
  • Audio
    1. Realtek ALC887 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
    4. Support for S/PDIF Out
  • LAN
    1. Realtek GbE LAN chip (10/100/1000 Mbit)
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16
      (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
    2. 2 x PCI Express x1 slot
      (The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
  • Storage Interface
    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2* SSD support)
      * Supports only M.2 SATA SSDs when using an AMD 7th Generation A-series or Athlon� processor.
    2. 4 x SATA 6Gb/s connectors
    3. Support for RAID 0, RAID 1, and RAID 10
  • USB
    Chipset:
    1. 2 x USB 3.1 Gen 1 ports available through the internal USB header
    2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
    CPU:
    1. 4 x USB 3.1 Gen 1 ports on the back panel
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 2 x system fan headers
    5. 1 x M.2 Socket 3 connector
    6. 4 x SATA 6Gb/s connectors
    7. 1 x front panel header
    8. 1 x front panel audio header
    9. 1 x S/PDIF Out header
    10. 1 x CPU cooler LED strip/RGB LED strip header
    11. 1 x USB 3.1 Gen 1 header
    12. 2 x USB 2.0/1.1 headers
    13. 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
    14. 1 x speaker header
    15. 1 x serial port header
    16. 1 x Clear CMOS jumper
    17. 1 x chassis intrusion header
  • Back Panel Connectors
    1. 1 x PS/2 keyboard port
    2. 1 x PS/2 mouse port
    3. 1 x D-Sub port
    4. 1 x DVI-D port
    5. 1 x HDMI port
    6. 4 x USB 3.1 Gen 1 ports
    7. 2 x USB 2.0/1.1 ports
    8. 1 x RJ-45 port
    9. 3 x audio jacks
  • I/O Controller
    1. iTE I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Overheating warning
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 1 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      3D OSD
      @BIOS
      AutoGreen
      Cloud Station
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      RGB Fusion
      Smart Backup
      Smart Keyboard
      Smart TimeLock
      Smart HUD
      Smart Survey
      System Information Viewer
      USB Blocker

    2. Support for Q-Flash
    3. Support for Xpress Install
  • Bundled Software
    1. Norton Internet Security (OEM version)
    2. Realtek 8118 Gaming LAN Bandwidth Control Utility
  • Operating System
    1. Support for Windows 10 64-bit
    2. Support for Windows 7 64-bit
      * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
      * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
  • Form Factor
    1. Micro ATX Form Factor; 24.4cm x 20.5cm
  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
